[SOLVED] Which glue strip should I use for laptop screen replacement?

Appletax

Appletax

Well-Known Member
Reaction score
387
Location
Northern Michigan
Solution:

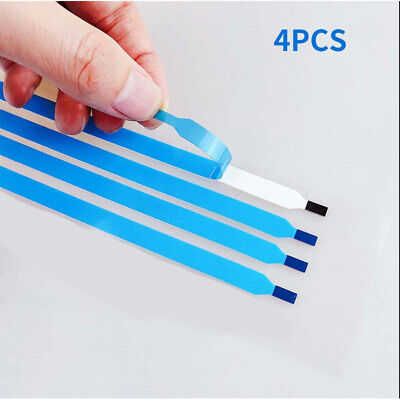

10PCS Laptop Screen Double-sided Adhesive Mobile Phone Easy-to-pull Display Tape Strip High-viscosity Bezel Sticker Glue Tape​




---

Got one of the screens that has a glue strip on either side with a little nub at the bottom for pulling out the strip just like the ones used to glue phones parts like an iPhone battery.

Am I able to buy this exact glue strip?

Otherwise, I have 2mm double-sided adhesive strips that I could use. I'd need to use 3-4 of them because they're so narrow. It probably wouldn't be as strong as the original tape.

What to do?

Last edited:
Last edited:
Appletax said:
I think it could be too permanent.
Click to expand...

As do I. There's no doubt that it will work, but God forbid you ever need to remove that screen "with grace" for any other reason.

I've used this stuff for its intended purpose and to say it develops a death grip after a not too long a time to set well is an understatement.

I want something that's designed to allow removal should that need arise. The tolerances for screens (as but one thing) don't allow you to get under them and slice the foam of the tape in half without the very high probability of screwing up something else.

But, if true permanence is your goal, then this stuff is unlikely to be beaten!

Appletax said:
Do you think this would work fine?

View attachment 14419

It's in-stock now at Walmart vs waiting till Tuesday to get the other stuff.

Edit: I think it could be too permanent.
Click to expand...
That is VHB tape. But the problem is less in how you attach it and more in how it can be removed without destroying the item later. Unlike other adhesives VHB doesn't respond well to heat for decreasing adhesion. But it will respond well to something ilke WD40.

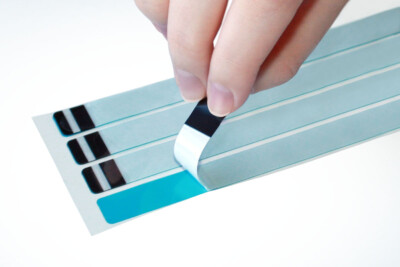

VHB tape is semi-permanent, you won't remove a screen without breaking it after using VHB. Better to just use TESA tape or red tape as it's more forgiving when trying to remove screens. The white tape battery tape works but it's much thinner than OEM stretch tape, still a better alternative than VHB, TESA and Red tape. About a year ago we ordered 100 pcs of OEM (or close) from Ali. It's the proper thickness so it adds some screen cushioning, it's stretch release without leaving any tape residue. I posted a link in here last year for a source. We really like that tape for screens.

OEM tape is 0.3 to 0.6mm thick. Stretch release battery tape is 0.1mm thick. The link I shared a year ago is dead but these are close to what we ordered. A year ago someone complained no pull tab which we didn't find an issue. We stick the tape so it has about a quarter inch visible above or below the screen so we can grab it with tweezers and pull.


I follow a trick from some guy on YouTube where he carefully stretch-removed the original tape without mangling it then re-used it.
Yes, it works.
Just have to be very careful not to twist or break it with steady and progressive pull.

Rigo said:
I follow a trick from some guy on YouTube where he carefully stretch-removed the original tape without mangling it then re-used it.
Yes, it works.
Just have to be very careful not to twist or break it with steady and progressive pull.
Click to expand...
That's a pipe-dream on many, though. Sure, there are exceptions.. but that hasn't been my experience at all.

Markverhyden said:
Let us know how it goes.
Click to expand...
Way too short. Had to return.

gadgetfixup said:
OEM tape is 0.3 to 0.6mm thick. Stretch release battery tape is 0.1mm thick. The link I shared a year ago is dead but these are close to what we ordered. A year ago someone complained no pull tab which we didn't find an issue. We stick the tape so it has about a quarter inch visible above or below the screen so we can grab it with tweezers and pull.

Click to expand...
Buying these. Wonder if the 0.6mm option is the best for laptop screen replacements.

Last edited:
